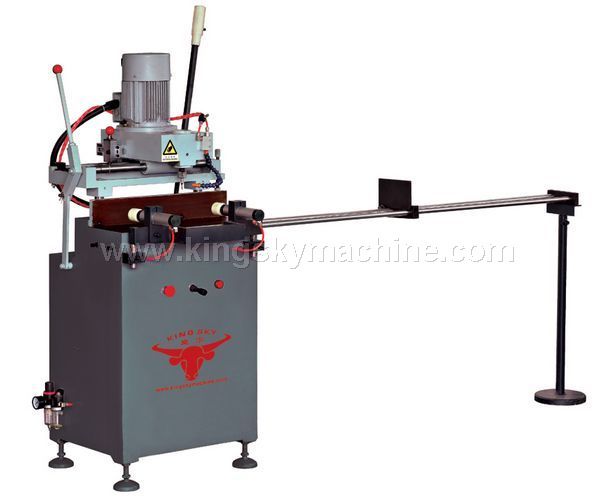

KS-X151-Single Axis Copy Router

KS-X151-Single Axis Copy Router



Developed by German Mature structure, it mainly used for milling different through holes for aluminum alloy materials of curtain walls and windows as per hole mould in 1:1 ratio. With casting technique, the worktable is very stable, durable and metabolic; the special designed fast/slow feeding device could improve the quality of machining finish and prolong the lifespan of blades.

Semi-automatic Copy Router has adjustable postpositional horizontal tri-head drill, solving the problem of inconvenient operation and unadjustalbe hole distance, it also has large machining size and high precision, furnished with adjustable tri-head drill, which could drill holes on the multipoint lock work piece and the milling & cutting would be finished within one time machining, so it is more suitable for drilling multipoint lock, milling and cutting on the adiabatic profile material.

TECHNICAL PARAMETER
Model and parameter
Single Axis Copy Router KS-X151
Worktable Dimension
510X1700 mm
Maximum working travel of vertical milling head from left to right
240mm
Maximum working travel of vertical milling head from front to rear
120mm
Motor power
1.1kW
Rotating speed of vertical milling tool
12000r/min
Milling tool size  (Common use)
φ8
Milling tool size   Useable
φ3/φ5
Maximum working travel of pressing cylinder
50mm
Working voltage
380VAC 50Hz
Working air pressure
0.6-0.8MPa
Overall Dimension
2520/520X630X1540MM
Tool feeding mode
Manual
Machine Weight
150kg
Optional function and device
Clamps, positioning templates, and retrofitted rack
