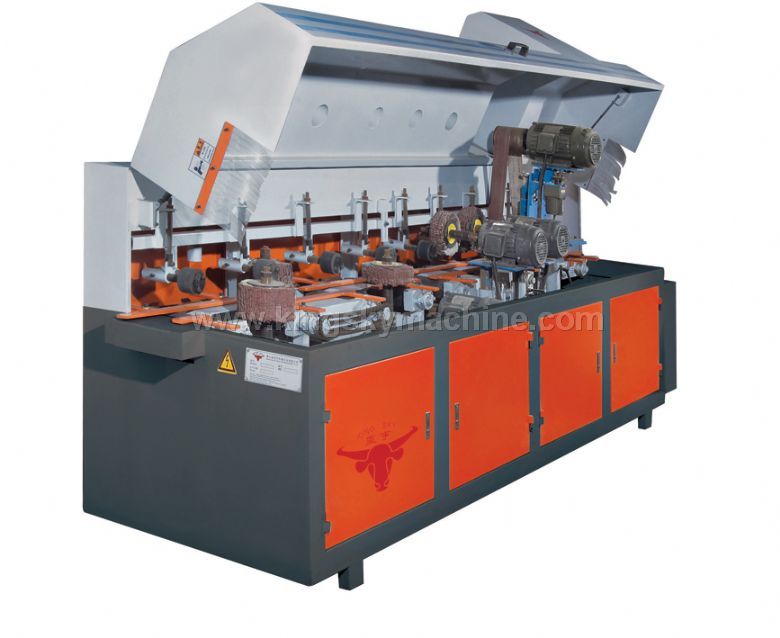

KSAW-R630-Alu-Wood Door & Window Profile Polishing Machine

KSAW-R630-Alu-Wood Door & Window Profile Polishing Machine



The machine is a new generation of wood profile polishing machine researched and developed by our company as per market survey and users' suggestions, and it can carry out polishing of the practical floors, door frame lines, wood lines, foot lines and other products, remove the burrs of the back surface and mortise and tenon joints. So it is the necessary equipment for the production of top grade floors.
The machine has the features of compact structure, less occupying, high efficiency, smooth material feeding, and it can amend the straightness of the floors.
Buffing wheels are made of various materials with flexible transformation.
Full-enclosed design is adopted for good dust collecting effect.
Applicable to the sanding of various types of flat-panel painting surfaces, it has high sanding precision. After polishing, the thickness error of the whole panel is less than ± 0.1mm.
With high adaptable ability, stable electric apparatus, high efficiency, and full-enclosed shields protect the safety of operators.

TECHNICAL PARAMETER
Model and parameter
KSAW-R630
Alu-Wood Door & Window Profile Polishing Machine
Processing width
60-200mm
Processing thickness
0-100mm
Minimum length

Sanding belt rotation speed:
1400RPM
Speed of conveyor belt
40m/min
Power of motor
1.1KWx7  2.2KWx1
Working air pressure
0.6-0.8Mpa
Air volume
2680m3/h
Diameter of dust pipe
φ95x6
General power
12Kw
Working voltage
380VAC 50HZ
Overall Dimension (L×W×H)
3600x800x1530mm
Machine device
Dust collector\spare rolls
