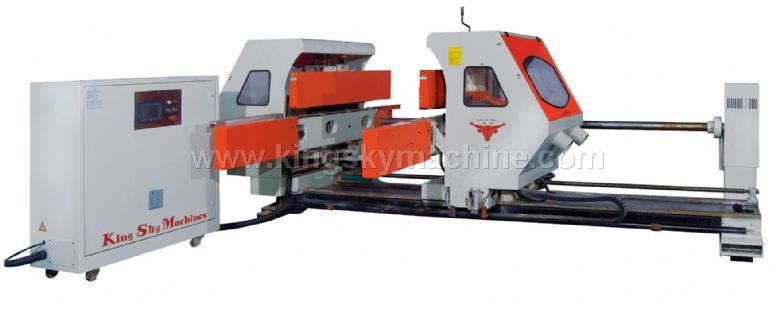

KSAW-SX221-CNC Alu-Wood Profile Double End Milling Machine

KSAW-SX221-CNC Alu-Wood Profile Double End Milling Machine




The machine is exclusively developed by our company. It adopts advanced mechanical technology in the world in combination with the professional outcome of our company; it is the latest equipment in the processing enterprise which are engaged in alu-wood doors and windows and demands one-time finishing of complex processing of aluminum and wood profiles; it is mainly used for two-end milling processing of aluminum door and window, curtain wall, solid wood, or solid wood composite profiles.

TECHNICAL PARAMETER
Model and parameter
KSAW-SX221
2600mm
Minimum processing length
220mm
60mm
Maximum processing width
1200mm
Diameter of vertical milling cutter
φ160 -200mm
Diameter of saw shaft
φ25.4
Vertical spindle motor power
5.5Kw X2
Upper saw motor power
4Kw X2
Lower saw motor power
3Kw X2
Saw spindle speed
2890RPM
φ230Xφ25.4X3mm
Size of upper saw blade
φ250Xφ24.5X3mm
Size of spindle
φ40mm
Rotating speed of vertical spindle
7000RPM
Power of feeding motor
3Kw
Power of motor for regulating width
0.75Kw
General power
28.75Kw
Working voltage
380VAC/50HZ
Overall dimension
5300X2900X1670mm
Optional device, optional function
Clamps, positioning template
Legend 1 of processing
Positioning rack
Dust collector
Spare tool
