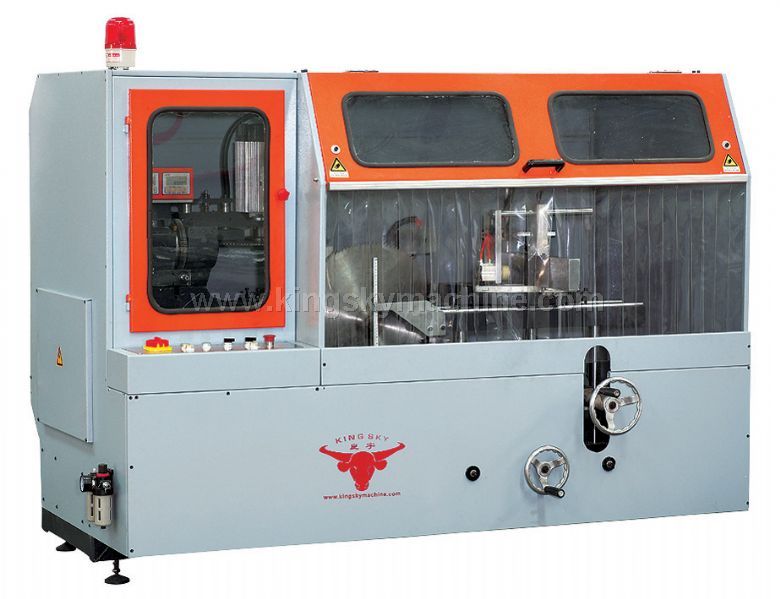

KS-J265-Curtain Wall Notching Saw

KS-J265-Curtain Wall Notching Saw



The machine is developed and designed by adopting mature Italian design idea in combination with the newest application requirement and habit, and the machine is mainly used for the processing of end surface connector of aluminum curtain wall profile, window and door profile and other aluminum industrial profiles. It’s equipped with accurate digital display angle measuring device and Italian branded motor, as well as 22" German hard alloy saw blade, it has features of high linear velocity and precision and the swing angle of both blades is ±45°. It's the most stable machine after release to market, and wins high appraisal and recognition of customers; it’s one of our featured machines.

TECHNICAL DATA
Model and parameters
Curtain Wall Notching Saw
Cutting width* Cutting height
260x210(90°)/260X146(45°)
Power of main motor
2X2.6kW
Rotating speed of main motor
2840RPM
Size of saw blade
Φ550/Φ500XΦ30X120T
Rotating angle of saw blade
±45°
Feeding speed of saw blade
0-3m/min
Rotating angle of worktable
±45°
Working air pressure
0.6-0.8MPa
Working voltage
380VAC 50HZ
Overall Dimension (L*W*H)
2350x1575x1800mm
Weight of machine
1200Kg
Optional Device
Clamps, positioning template/spare tool
