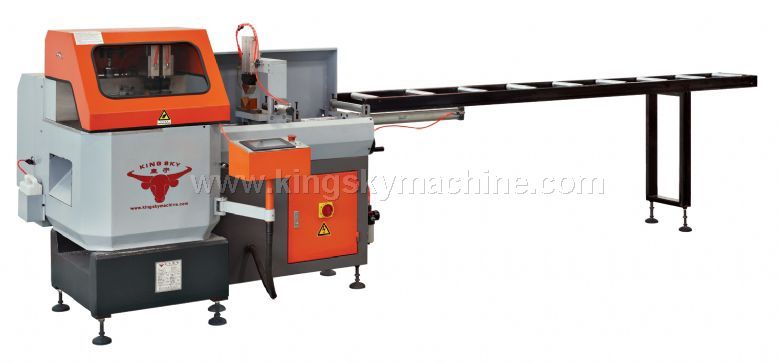

KS-J8171-Auto-feeding Single Head Saw

KS-J8171-Auto-feeding Single Head Saw



This machine adopts mature German design concept and application of the latest operation requirements and practices, mainly used for cutting aluminum alloy, PVC, copper and other industrial profile, angle profile,  aluminum alloy materials of doors and windows as well as curtain wall. It’s the most stable and widely machine for volume cutting in the market.

By adopting arm-waving type feeding, the golden cutting angle formed by the tool and profile has unmatched advantages for its stability and durability, smoothness and accuracy of cutting than other similar machines of different structure. Equipped with German hard alloy saw blades, Japan servo motors, precise ball screw and imported rails, the main parts are casted with seamless connection, the repositioning accuracy is ±0.05mm.

TECHNICAL PARAMETER

Model and parameter
 KS-J8171 Arm Waving
Auto-feeding Single Head Saw
Cutting angle
 45° 90°
Range of cutting angle
45°one side  90°double side
Processing range ( H×W)
150×230mm
Maximum cutting length of one-time feeding
5-595mm
automatic feeding mode
Cylinder feeding
Feeding and cutting mode
Repeated feed and equal length cutting
Precision of angle
±0.05°
Precision of cutting length
±0.1 mm
Rotating speed of main motor
2840r/min
Power of main motor
Standard: 2.2kW/3.0kW    Other types of motors can be selected
Saw feeding \ returning speed
Feed 0-3m/min  Return2-3m/min
Saw blade size
Ф500×Ф30×120T
Power supply
380VAC 50Hz, no-standard can supply as discussed
Dimension (L × W × H) mm
4500x1120x1350mm
Weight of machine
850Kg
Optional device
Clamp, positioning templates, Dust collector and spare tool and material bracket
Remarks: More functions can be gained by choose the feeding mode and cutting head working mode.
