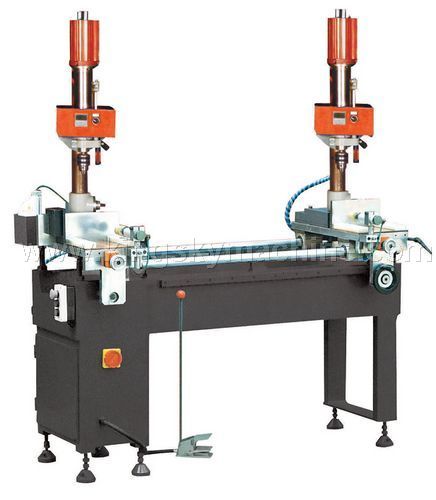

KS-Z203-Double Heads Milling Machine

KS-Z203-Double Heads Milling Machine



The machine is developed and designed by adopting mature Italian design idea in combination with the latest application requirement and habit, and the machine is mainly used for processing of the through-ole or blind hole for aluminum curtain wall profiles, and it can also be used for processing aluminum industrial profiles and window profiles.
1.      It adopts motor to cylinder output directly; the drilling process has good stability and accuracy.
2.      Spindle could be collocated with normal driller and poly-driller, the drilling is with convenience and efficiency.

TECHNICAL PARAMETER
Model and parameters
KS-Z203
Double Heads Milling Machine
Standard configuration head
2pcs or more
Dimension of worktable (L *W)
250x230mm
Maximum moving distance of spindle from front to back
60mm
maximum moving distance of spindle from up to down
150mm
Rotating speed of Motor
1400r/min
Motor power
1.5Kw X 2
φ15mm
Minimum diameter of drilling hole
φ3mm
Minimum hole distance for each group
235mm
Minimum hole distance for single group (porous device)
13.5-22mm
Working air pressure
0.6-0.8Mpa
Working voltage
380VAC/50HZ
Overall Dimension (L*W*H)
2300×1400×1200 mm
Weight of machine
800kg
Optional device, function
Digital display function
Retrofit movable pneumatic drill seat
Clamps, positioning template
Spare tool
