Developed by German Mature structure, it mainly used for milling different through holes for aluminum alloy materials of curtain walls and  windows as per hole mould in 1:1 ratio. With casting technique, the worktable is very stable, durable and ametabolic; the special designed  fast/slow feeding device could improve the quality of machining finish and prolong the lifespan of blades.

The Double Axis Copy Router fixed with a vertical milling tool and a horizontal milling tool. It can realize to process on two neighbour surface of the profile with one step clamping. It ensures the high re-positioning accuracy and high efficiency.

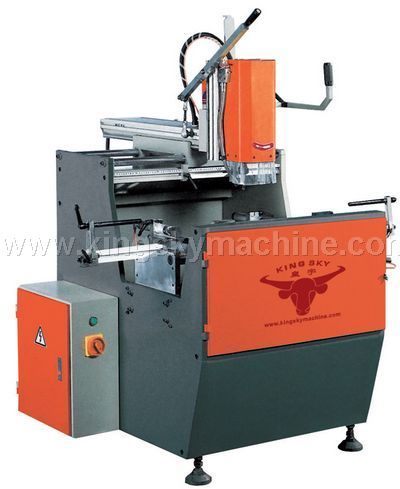

Heavy-Duty Alu-profile Copy Router is designed and developed by adopting 2kw spindle professional for CNC machine use. It ensures the processing range and size much bigger and the high accuracy. Especially apply to process the king-size holes on aluminum material and sanitary material etc.



Model and parameter	Heavy-duty Curtain Wall profile Copy Router KS-X156
Worktable Dimension	800X330 mm
Maximum working travel of vertical milling head from left to right	540mm
Maximum working travel of vertical milling head from front to rear	280mm
Motor power	2kw
Rotating speed of vertical milling tool	12000r/min
Milling tool size  (Common use)	φ8
Milling tool size  Useable	φ3-φ10
Maximum working travel of pressing cylinder	80mm
Working voltage	380VAC 50HZ
Working air pressure	0.6-0.8MPa
Overall Dimension	800(2400)X1350X1720mm
Tool feeding mode	Manual
Machine Weight	700kg
