Double Head CNC 45 Degree Saw,KS-J273S-FOSHAN KINGSKY MACHINERY CO.,LTD.

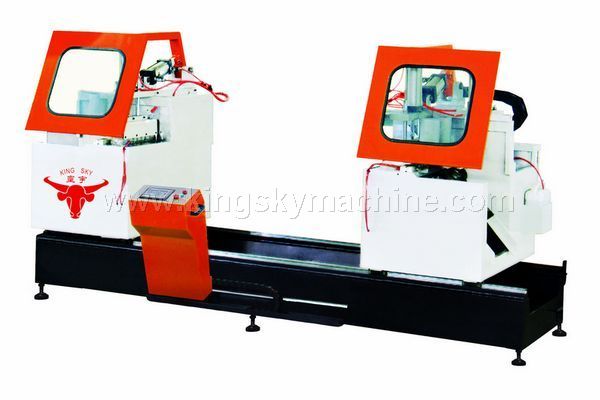

KS-J273S-Double Head CNC 45 Degree Saw

Developed by German Mature structure. It’s suitable for 45 degree cutting for different kinds of profiles. The saw blades are directly assembled to the original Italy Imported motor; it assures stable, precise, high efficient processing by imported linear guide and Japan Servo Motor.

TECHNICAL PARAMETER

Model and parameters

KS-J273S Double Head CNC 45 Degree Saw

Processing range

200~2500mm

Precision

±0.05mm

Cutting Angle

45°（Deviation≤0.05°）

Profile Qty.of one-time cutting

1~6pieces

Cutting Range(W×H)

150×80mm

Power of motor

2×2.2kw

Blade Size

φ400×φ30×120T

Dimension（L×W×H）

4100×1700×1350mm

Pre: No other
Next: KS-2X611--Double Head Six-cutter curtain Wall End Milling Machine

Model and parameters	KS-J273S Double Head CNC 45 Degree Saw
Processing range	200~2500mm
Precision	±0.05mm
Cutting Angle	45°（Deviation≤0.05°）
Profile Qty.of one-time cutting	1~6pieces
Cutting Range(W×H)	150×80mm
Power of motor	2×2.2kw
Blade Size	φ400×φ30×120T
Dimension（L×W×H）	4100×1700×1350mm
