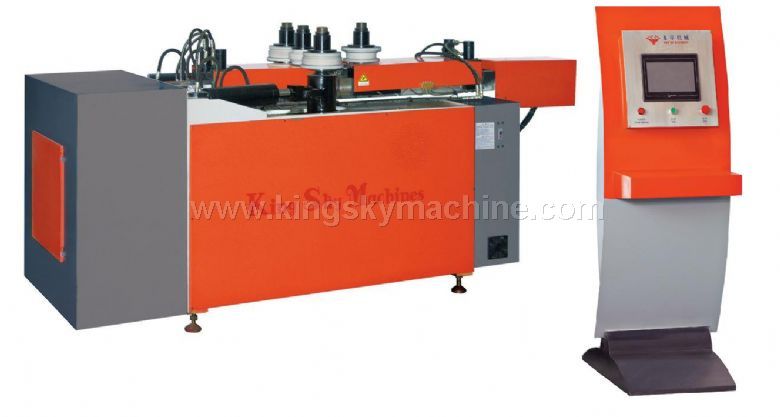

ENGLISHKS-W1025S-CNC Vertical Arc Bending Machine
Mainly used for bending iron profile,copper profile and aluminum profile, it’s the ideal equipment for furniture,iron technique,aluminium windows and doors,as well as decoration steel.
CNC Hydraulic Profile Arc Bending Machine is the best and most stable machine in the world market,it fully solves the problems of inaccurate bending,deformation,surface scratch and crumple,etc.with our CNC software,it can relalize high precision and nice appearance with easy operation.By adopting special device, it can protect the profiles from deformation and surface scratch;Automatic colored man-machine touching interface allows simple operation;With imported integrated PLC system,this machine can realize simple operation with the functions of automatic detection and diagnosis and the features of high circuit stability, wide applicability of operating environment; remote maintenance and upgrading.
Heavy-duty hydraulic arc bending machine is the most advanced equipment in the world at present. It can be used for the profile such as rolling and pressing steel, angle bar, channel iron, square bar, T-shaped steel, UPN, square tube (including stainless steel tube, brass, or red copper, etc). It can bend the steel profile up to D500mm or larger diameter. When conducting the operation of pre-bending, two side rollers can be respectively adjusted by hydraulic system of the machine. Corrector roll can be equipped to compensate the deformation in the process of roll forming; horizontal or vertical placement depends on the demand of the customers.
TECHNICAL PARAMETER
|
Model and parameters |
KS-W1025S
CNC Vertical Arc Bending Machine |
|
Minimum bending radius |
50mm |
|
Maximum diameter of mould |
300mm |
|
Diameter of roller |
60mm |
|
Driving mode |
Oil cylinder and servo system independently control the upper roller and down roller, 2 motors driven gearbox, 4 roller linkage moving |
|
Working mode |
NC, hydraulic drive |
|
Center distance of rollers |
280mm |
|
Positioning precision of upper roller |
0.05mm |
|
Max.travel route of upper roller |
400mm |
|
Maximum width of profile |
170mm |
|
Power of oil pressure motor |
2.2kw﹢ 4.4kw×2 ﹢5.5kw |
|
Pressure of oil |
25T |
|
Working voltage |
380VAC/50HZ |
|
Dimension (L*W*H) |
1010*3120*1530mm |
|
Bending Shapes |
It’s driven by All-Digital Variable Frequency Motor with compact structure and high reliability, the CNC program automatically adjusts the matching rotating speed of 3 rollers.1st,2nd,3rd axis are driven by Variable Frequency Motor, 4th axis rotate passively and stably, the CNC program automatically adjusts the matching rotating speed of rollers， thus it can control the profile deformation during bending, it can also bend very thin profiles.1st,4th axis are driven by Servo Motor to go up and down, 2nd,3rd axis are driven by hydraulic force to go up and down, the accuracy and efficiency is very high.It can select different operation mode to meet different processing requirement during operation.The drive is very stable with four combination moulds and adjustable pad. the upper roller is driven by hydraulic force, the processing efficiency is very high.It has reasonable structure and full functions, also take up small space.It can bend many different profiles by changing the bending moulds. It can bend maximum 8 different radius arc by inputting different bowstring length, radius according to required arc in the interface. |
|
Weight of machine |
1800Kg |
|
Optional function and device |
bending mould of profile |
