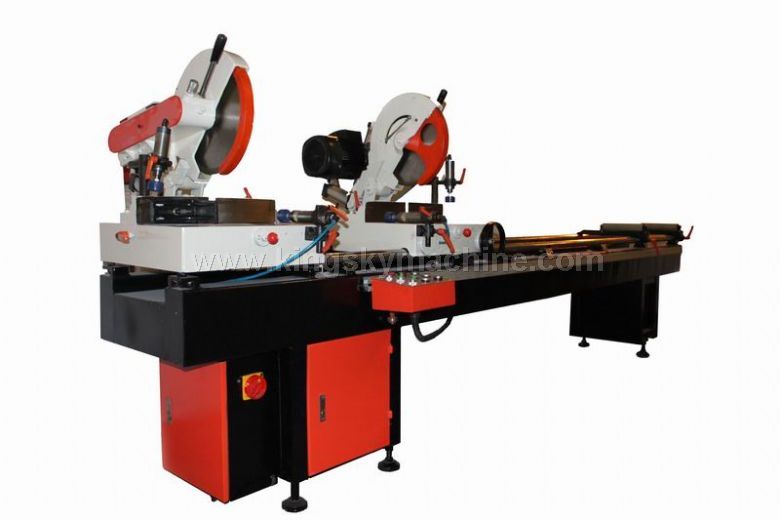

KS-J291-Simple-type Double Mitre Saw

KS-J291-Simple-type Double Mitre Saw




1. Adopted imported hard alloy saw blade for durability and high precision;
2. The two sawing units can cut profiles simultaneously or separately;
3.Left and right worktables can be rotated between be rotated between-45°~90°~ +45°;
4. Left and right saw blades can swing between 90°and 45°;
5. Blade advanced Italian structure for ease of saw blade fixing, with saw blade outside diameter reaching Ф400mm;
6. Automatic safety cover, ensuring safe work;
7. Optional device: digital display device.

Main Technique Parameter:
Cutting length
500~4000 mm
Cutting width × Cutting height:
215×105 mm
Power of main motor
2.2KW×2
Speed of main motor
3150r/min
Saw blade size
Ф400×Ф30×120T
Swing angle of saw blade
90°~45°
Worktable swing angle
-45°~90°~ +45°
Saw blade feeding speed
0~3m/min
Saw blade returning speed
2~3m/min
Working pressure
0.6~0.8Mpa
Working voltage
380VAC
Overall dimension(L×W×H)
5600/6300×1400×1650 mm
Weight
1500kg
